brevis.one SMS Gateway

The Sector Nord AG is an official brevis.one GOLD PARTNER

The future of connectivity and performance - the new Desktop Extended Edition DX2

The Desktop Extended Edition DX2 replaces the previous Desktop Edition DX. This model was developed to exceed your expectations with regards to speed, connectivity and user-friendlyness. Be it the 4G or the 5G variant - the DX2 is perfect for the needs of modern users while staying attractive in terms of price.

Advantages

Faster, more efficient and more reliable: The DX2 is not only faster than ever before but also optimized for a seamless user experience. Due to a higher processing speed (up to 30%), you can manage your tasks faster and more efficient.

Extensive Connectivity leading to a maximum of flexibility: The DX2 offers a broad pallet of new connectivity options to live up to your requirements: USB 3.0 Ports, VGA, HDMI Ports.

Power Connector: Guarantees a stable and reliable power supply, even with intense usage.

Optimal heat dissipation for top performance: To ensure high performance, the case of the DX2 functions as a passive coolant system, guaranteeing efficient heat dissipation even with a high workload.

Chose your Connectivity: 4G or 5G - The DX2 is available in two versions, which cater to different needs:

DX2 4G: Reliable 4G-Connectivity. This variant offers all the important functionality of the new model and is ideal for users that require a fast and stable internet connection.

DX2 5G: The 5G-variant lets you experience the Future of Connectivity and offers ultrafast speeds. It is ideal for those, who want to keep one step ahead and seek peak performance.

Device with the antenna

Front

Back

Scope of delivery and technical specifications

Scope of delivery

brevis.one SMS Gateway - DX2 Edition
Power supply unit
Console cable USB-A to DB9
Antenna
Power Connector
Wall mounting rails

Technical Specifications

Mobile communication technology: UMTS 3G, LTE 4G, 5G (optionally)
Throughput: up to 30 SMS per minute
Antenna: Standard-SMA - Female, 50Ω
Frequency Bands: 850/900/1800/1900MHz
outdoor antennas are available as optional equipment (up to 20m)

Price

Desktop Extended Edition 4G: 899,-€ (plus VAT)
Desktop Extended Edition 5G: 1250,-€ (plus VAT)
Request an offer!

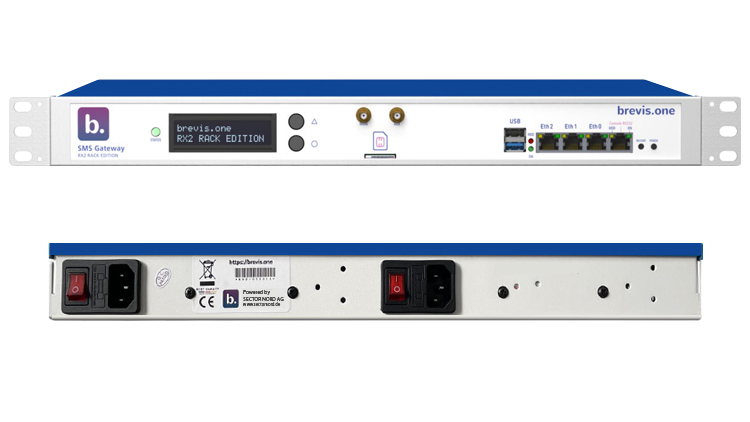

Rack Extended Edition (RX2)

brevis.one SMS-Gateway - Rack-Edition (RX extended)

Scope of delivery and technical specifications of the SMS Gateway 19"Rack Extended Edition (RX2):

SMS Gateway Appliance
Throughput: up to 30 SMS per minute
Antenna: Standard-SMA - Female, 50Ω
Mobile communication technology: UMTS 3G, LTE 4G, 5G (optionally)
Frequency Bands: 700/800/850/900/1800/1900/ 2100/2300/2500/2600 MHz
outdoor antennas are available as optional optional equipment (up to 20m)
Support 8*5 (799,-€ p.a. plus VAT) und 24*7 (1.499,-€ p.a. plus VAT) available
Quick Start Guide; Complete Documentation Online
An activated SIM-Card (Full-Size) with a valid mobile plan, which is not part of the scope of delivery, is required
Redundant power supply unit (2x Hot Swap)
Price 1.899,-€ (plus VTA) - Request an offer!

Link to the brevis.one License- and Supportcenter

MY.BREVIS.ONE

Features

E-Mail to SMS

Many programs communicate important information exclusively as e-mails. However, SMS messages generate much more attention and provoke a much more instant response.

This way you will also learn about important events, even when you are not regularly reading your e-mails. Critical for monitoring your fire protection or video surveillance systems.

Monitoring

The SMS Gateway monitoring system can monitor your servers and report any failures. You will be notified, even if your actual monitoring system fails. If the internet connection in your data center no longer works, you will also be reliably informed.

No longer wonder who will monitor your servers at night or during weekends to report problems.

Messages Routing

Target your SMS messages with a rule-based routing of SMS and e-mail messages. This allows you to perform different actions depending on the sender, recipient or content of the message.

For example, send different messages to different locations depending on the region from which the SMS message is sent.

Outlook Plugin

Outlook is the standard for corporate communication: it is fast, uncomplicated and widely used. With the Outlook Plugin you can send SMS messages via Outlook using the contacts in your Outlook address book without having to maintain it separately (requires e-mail to SMS).

SMS Message Forwarding

Forward incoming SMS messages to your choice of recipients as SMS messages, e-mails or script. The brevis.one SMS Gateway is adaptable to your sophisticated deadline messaging and delivery confirmation requirements.

Recipient Groups

Send messages to multiple recipient groups saving you the effort in having to write and send each message separately. Address different departments, specific customer segments or regional teams easily and your targeted messages.

High Availability

Particularly important whenever the SMS Gateway performs critical jobs. Greater security means better planning for trouble-free operation.

The Messenger App saves your money. If the receiver doesn‘t use telegram, he simply gets a text message.

Auto Reply

Reply to incoming messages with a standardised and automatically sent SMS message.
